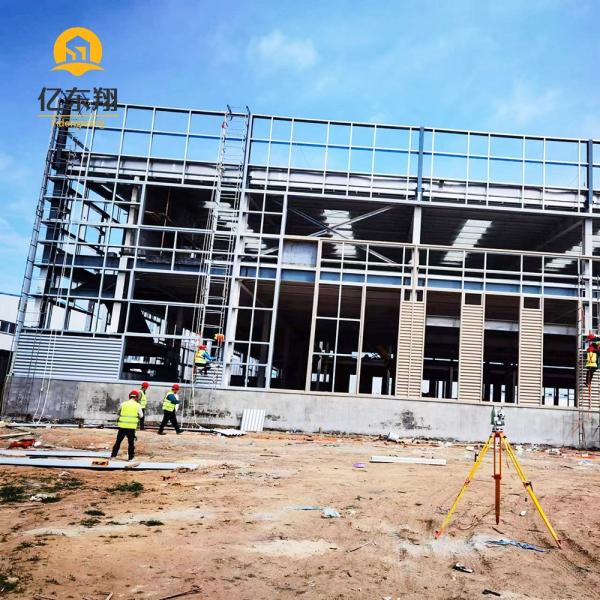

Prefab Steel Warehouse with Glass Wool Panels

Brand Name : YDX

Model Number : YDX-SD

Certification : CE ISO SGS

Place of Origin : CHINA,QINGDAO

MOQ : 10-10000 square meters

Price : $30.00-$65.00

Payment Terms : T/T

Supply Ability : 10000 tons/month

Delivery Time : 20-30 works days

Packaging Details : Exported standard packing

Material : Steel

Window : PVC, Aluminum Windows

Resistance : Corrosion, Fire, Termites

Toughness : Good Toughness

Typical Model : Single Span ,Multi Span

Highlight : Painted Steel Structure Warehouse

Installation : fast

Windows : Aluminum

Product Usage : Building Construction

Product Material : Steel Structure

Cost : Moderate

Technique : Hot Rolled

Steel Grade : Q235B Q345b Low Carbon Steel

Versatility : Flexible

Structure Type : Frame

Frame Type : Steel Frame

Earthquake Resistance : Strong

Seismic Design : High Seismic Zone

Installation Time : Short

Aesthetics : Modern

Construction Type : Frame

Product Resistance : Corrosion Resistant

Finish : Galvanized/Painted/Cladding

Roof : Glass Wool, EPS, PU

Product Fire Resistance : Fireproof

Door : Sliding Door or Rolling Door

Contact Now

Prefab Steel Structure Warehouse with Glass Wool Sandwich Panels

Key Features
  • Attractive design with beautiful and elegant appearance using color steel sandwich panels
  • Lightweight construction for convenient shipping and handling
  • Easy assembly and dismantling with simple tools (plugs and screws)
  • Sturdy steel frame structure with sandwich panels for durability
  • Completely waterproof construction
  • Customizable roof, wall, doors, and windows to meet specific requirements
  • Long-lasting anti-corrosion coating on steel frame parts for 50+ years of service

Product Specifications

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

Prefab Steel Warehouse with Glass Wool Panels

Technical Specifications

Main Structure - Column Q355/Q235 H-steel, Box column available
Main Structure - Rafter, Beam Q355/Q235 H-steel
Surface Processing Options 1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120 μm thickness)
2. Hot dip galvanization
Sub Structure - Purlin Q355B, C/Z steel section, galvanization 275g/m²
Sub Structure - Angle brace Q235B, L-steel
Sub Structure - Cross bracing Q235B round bar, L-steel
Sub Structure - Tie bar Q235B, round pipe
Sub Structure - Batter brace Q235B, round bar
Roof System - Panel Options 1. Insulated sandwich panel (PU, rock wool, glass fiber, EPS) with steel sheets (50mm/75mm/100mm thickness)
2. Steel plate (0.4mm/0.5mm thickness)
Roof System - Gutter Options 1. Galvanized steel gutter (2.0mm/2.5mm/3.0mm thickness)
2. Painted, pre-finished steel gutter (0.4mm/0.5mm/0.6mm thickness)
Wall System - Panel Options 1. Insulated sandwich panel (PU, rock wool, glass fiber, EPS) with steel sheets (50mm/75mm/100mm thickness)
2. Steel plate (0.4mm/0.5mm thickness)
3. Brick wall (provided by client)
Door Options 1. Roller door for truck (custom size)
2. Sliding door for truck (custom size)
3. Access door (steel door, glass door etc.)
Window Options PVC or Aluminum frame (fixed, swing, sliding, louver etc.), custom sizes available
Accessories and Fasteners Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivets etc.
Other Options Crane systems available (5T, 6T, 10T, 16T, 30T etc.)
Prefab Steel Warehouse with Glass Wool Panels

Packaging and Transportation

Prefab Steel Warehouse with Glass Wool Panels

Frequently Asked Questions
What is the derust grade for the steel structure?
For the main steel structure, the derust grade is ball blasting Sa 2.5, and manual derust St2.0 on secondary steel structure.
How is the installation process handled?
We provide detailed construction drawings as a manual to guide you through the building erection and installation process step by step.
What are the common types of industrial buildings?
Portal frame is widely used for industrial workshops, office buildings, shopping malls and warehouses. Other types can be designed and manufactured according to customer requirements.
What maintenance is required?
Painting touch-ups should be done after frame installation to ensure the surface remains protected for extended periods.
